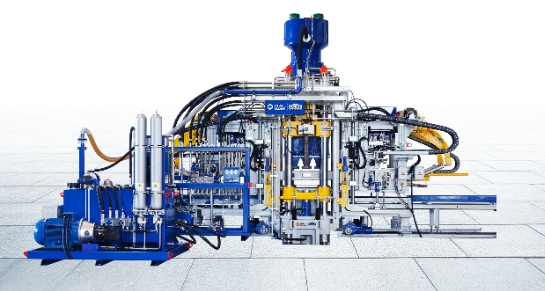

HP-1200T Hermetic Xovxwm Tshuab

HP-1200T Hermetic Xovxwm Tshuab yog lub tshuab zoo tshaj plaws rau kev tsim cov paving slabs lossis loj paving pob zeb. Cov xovxwm kaw tau tuaj yeem tsim cov khoom zoo, siab ceev square thiab cov duab plaub. Cov slabs no tuaj yeem siv rau terraces lossis paving, tab sis kuj rau cov slabs loj hauv cov chaw pej xeem thiab cov tsev (xws li cov chaw nres tsheb hauv nruab nrab, tshav dav hlau, khw muag khoom, thiab lwm yam).

Xya-chaw nres tsheb cycle brick ua

1. Npuag unloading chaw nres tsheb

2. Npuag dispersing chaw nres tsheb

3. Chaw Kho Mob (pwm hloov chaw nres tsheb)

4. Cov khoom siv hauv qab tshem tawm qhov chaw nres tsheb

5. Pre-pressing chaw nres tsheb

6. Chaw nres tsheb tseem ceeb

7. Demolding chaw nres tsheb

Kev piav qhia

1. Lub ntsiab siab txais kev hloov pauv loj-ntev roj tank ntim khoom, uas tuaj yeem teb sai, txav nrawm, thiab tuaj yeem tso tawm ntau lub siab.

2. Lub chaw nres tsheb hydraulic txais lub twj tso kua mis sib txawv, uas kho qhov ceev thiab siab los ntawm lub valve proportional, uas yog lub zog txuag thiab yooj yim rau kev khiav lag luam.

3. Lub turntable txais yuav ib tug ultra-loj slewing bearing, uas yog tswj los ntawm ib tug servo lub cev muaj zog nrog ib tug encoder, nrog ruaj khov thiab meej tswj.

4. HP-1200T Hermetic Xovxwm Tshuab txais qhov kev tswj xyuas qhov muag siab, thiab PLC txais yuav Siemens S7-1500 series.

5. Cov khoom siv deg unloading ntaus ntawv muaj ib tug built-in planetary tov khoom, thiab siv ib tug quantitative turntable rau unloading. Tus nqi thauj khoom yog qhov tseeb thiab ruaj khov txhua lub sijhawm.

6. Cov khoom siv hauv qab cov khoom siv thauj khoom tuaj yeem ua kom muaj nuj nqis ntawm cov khoom siv hauv qab los ntawm ntau yam kev hloov pauv, yog li tswj qhov siab ntawm cov cib tiav, txuag ntau cov pwm.

Khoom Parameters

Qauv	HP-1200T
Tus naj npawb ntawm cov chaw nres tsheb	7
Brick pattern arrangement (npe)	900 * 900 (1 daim / board)
	500 * 500 (2 daim / board)
	400 * 400 (4 daim / board)
Qhov siab tshaj plaws cib thickness	80 hli
Qhov siab tshaj plaws lub ntsiab	1200 t
Txoj kab uas hla ntawm lub ntsiab lub tog raj kheej siab	7 40mm
Qhov hnyav (nrog rau ib txheej pwm)	Txog 90,000 kg
Lub zog ntawm lub ntsiab tshuab	132.08 KW UA
Lub voj voog ncig	12-18 s
Ntev, dav thiab qhov siab	9000 * 7500 * 4000mm
