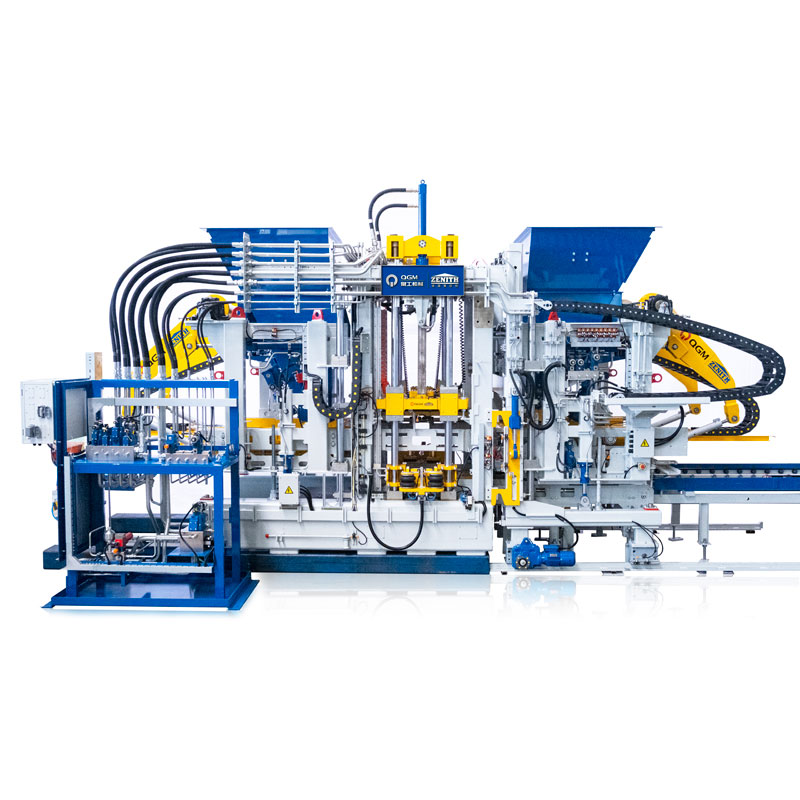

ZN1000-2C Tsis Siv Neeg Thaiv Tshuab

Main Technology nta

1) Kev tswj hwm kev hloov pauv ntau zaus

Txo lub cev muaj zog pib tam sim no thiab mos pib ua haujlwm tswj, ncua lub neej ntawm lub cev muaj zog. Lub ntsiab vibration txais yuav tsawg zaus standby, kev ua haujlwm siab, txhim kho kev ua haujlwm ceev thiab cov khoom zoo. Txo cov mechanicalaccessory thiab lub cev muaj zog puas tsuaj, ncua lub neej ntawm lub cev muaj zog thiab txhua yam. Lub zaus conveter txuag txog 20% ​​-40% lub zog dua li cov khoom siv ib txwm siv.

2) Lub teb chaws Yelemees Siemens PLC tswj qhov system, Siemens touchscreen, Lub teb chaws Yelemees

ZN1000-2C Tsis Siv Neeg Thaiv Tshuab yog ib qho yooj yim rau kev khiav lag luam, muaj tus nqi qis, kev ua haujlwm ruaj khov thiab muaj kev ntseeg siab. Siv cov thev naus laus zis tshaj plaws hauv kev lag luam hauv internet, paub txog cov teeb meem hauv thaj chaw deb-tua & txij nkawm. PLC thiab touchscreen siv PROFINET internet ua ke, yooj yim rau kev kuaj mob thiab WEB nthuav dav. Ua tiav qhov teeb meem kev kuaj mob thiab lub tswb nrov tas li, yooj yim rau kev tu lub tshuab thiab kev daws teeb meem. PLC khiav cov ntaub ntawv rau kev khaws cia mus tas li.

3) Vibration System

Lub rooj vibration muaj nrog lub rooj dynamic thiab lub rooj zoo li qub. Thaum vibration pib, dynamic rooj vibrate, static table nyob twj ywm zoo li qub. Cov qauv yog tsim los xyuas kom meej lub amplitude ntawm lub vibration rooj, thiaj li yuav xyuas kom meej qhov zoo ntawm cov khoom ua vaj tse. Lub rooj vibration siv HARDOX steel. Vibration hom: siv lub vibration rooj vibration + sab saum toj pwm kev co; vibration motor installation kev co damping ntaus ntawv thiab cua txias ntaus ntawv.

4) Pub System

Lub cev muaj zog siv SEW motors, uas tswj ob qho sib xyaw ua ke. Pub thav duab, hauv qab phaj thiab cov hniav sib tov yog ua los ntawm HARDOX steel, qhov chaw ntawm cov phaj hauv qab tuaj yeem hloov kho.Feeding system muaj cov khoom sib khi los tiv thaiv kom tsis txhob tawm. Lub qhov rooj ntawm lub qhov rooj tawm yog tswj los ntawm SEW lub cev muaj zog.

5) Chaw nres tsheb Hydraulic

Hydraulic twj thiab hydraulic li qub tau txais cov npe thoob ntiaj teb. Tube siv "Flange Connection, yooj yim installation thiab txij nkawm. Multi-point siab detection point, yooj yim nrhiav tau. Digital kub thiab blockage tswb muaj nuj nqi. Lub cev muaj zog thiab twj tso kua mis kev twb kev txuas, flange kev twb kev txuas, zoo coaxial. Dynamic proportional valve thiab tas li fais fab twj tso kua mis, ceev tswj, kev tswj hluav taws xob, txuag hluav taws xob.

Technical Data

Muaj Peev Xwm Ntau Lawm

Thaiv Hom	Tso zis	ZN1000C Block Ua Tshuab
240 * 115 * 53mm	Tus naj npawb ntawm cov blocks (block / pwm)	50
	Cubic meter / teev (m3 / teev)	13-18
	Cubic meter / hnub (m3 / 8 teev)	1005-1400 Nws
	Tus naj npawb ntawm cib (blocks / m3)	683
390 * 190 * 190 hli	Tus naj npawb ntawm cov blocks (block / pwm)	9
	Cubic meter / teev (m3 / teev)	22.8-30.4 Nws
	Cubic meter / hnub (m3 / 8 teev)	182.5-243.3
	Tus naj npawb ntawm cib (blocks / m3)	71
400 * 400 * 80mm	Tus naj npawb ntawm cov blocks (block / pwm)	3
	Cubic meter / teev (m3 / teev)	69.1-86.4 ib
	Cubic meter / hnub (m3 / 8 teev)	553-691.2
	Tus naj npawb ntawm cib (blocks / m3)	432-540 : kuv
245 * 185 * 75mm	Tus naj npawb ntawm cov blocks (block / pwm)	15
	Cubic meter / teev (m3 / teev)	97.5-121.5 Nws
	Cubic meter / hnub (m3 / 8 teev)	777.6-972
	Tus naj npawb ntawm cib (blocks / m3)	2160-2700 Nws
250 * 250 * 60mm	Tus naj npawb ntawm cov blocks (block / pwm)	8
	Cubic meter / teev (m3 / teev)	72-90 : kuv
	Cubic meter / hnub (m3 / 8 teev)	576-720 : kuv
	Tus naj npawb ntawm cib (blocks / m3)	1152-1440 Ib
225 * 112.5 * 60mm	Tus naj npawb ntawm cov blocks (block / pwm)	25
	Cubic meter / teev (m3 / teev)	91.1-113.9
	Cubic meter / hnub (m3 / 8 teev)	728.9-911.2
	Tus naj npawb ntawm cib (blocks / m3)	3600-4500 Nws
200 * 100 * 60mm	Tus naj npawb ntawm cov blocks (block / pwm)	36
	Cubic meter / teev (m3 / teev)	103.7-129.6
	Cubic meter / hnub (m3 / 8 teev)	829.4-1036.8
	Tus naj npawb ntawm cib (blocks / m3)	5184-6480 Ib
200 * 200 * 60mm	Tus naj npawb ntawm cov blocks (block / pwm)	4
	Cubic meter / teev (m3 / teev)	72-90 : kuv
	Cubic meter / hnub (m3 / 8 teev)	576-720 : kuv
	Tus naj npawb ntawm cib (blocks / m3)	576-720 : kuv
