ZN2000C pob zeb thaiv tshuab

ZN2000C Qhob Thaiv Tshuab yog tus qauv tsim tus kheej. Nws yog tus cwj pwm los ntawm qib siab ntawm kev txawj ntse thiab automation, thiab ua rau tag nrho kev siv cov thev naus laus zis thev naus laus zis xws li digitalization thiab cov ntaub ntawv kaw lus, uas yog siv dav hauv kev tsim kho cov nroog tshiab thiab cov nroog sponge.

Nta:

Dual vibration rooj, yim servo motors (yeem) Cov khoom siv sab saum toj

Modular los ua ke kom yooj yim txij nkawm Ntau ntau hom cib tsim

Muaj peev xwm ntau dua, kev tsim khoom ntau dua

Pallet loj 1400x1400/1300mm

Kev tsim cheeb tsam 1320x1350/1250mm

Khoom siab 40-500mm

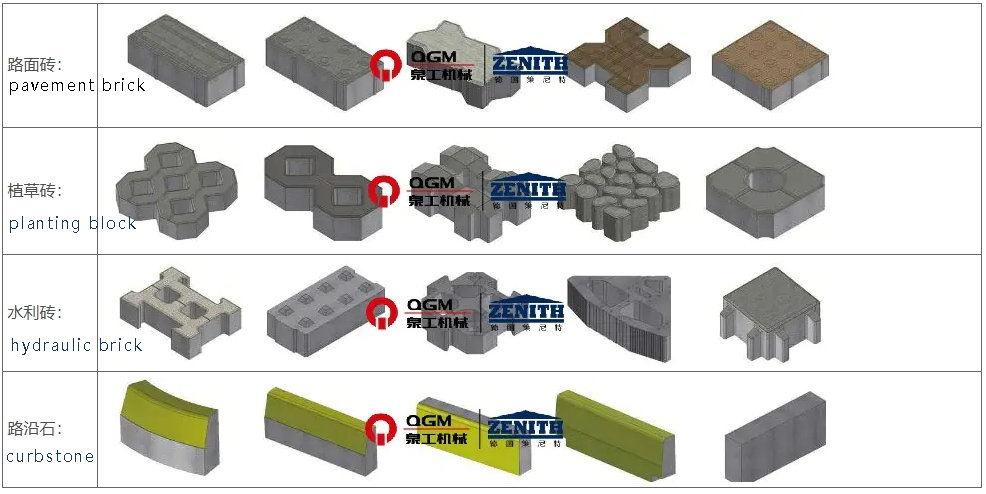

Tus naj npawb ntawm cov blocks Hollow bricks: 18 blocks / pwm (390x190x190mm)

Txheem bricks: 105 blocks / pwm (240x115x53mm)

Txoj kev cib: 66 blocks / pwm (200x100x60mm)

Khoom loj Approx. 10,000

Kwv yees li. 4,700 ib

Kwv yees li. 3,400 Nws

Vibration system Qhov siab tshaj plaws excitation quab yuam ntawm vibration rooj: 200 / kN

Qhov siab tshaj plaws excitation quab yuam ntawm lub taub hau xovxwm: 40 / kN

Hluav taws xob tsis muaj zog tag nrho (siv): 231/kW

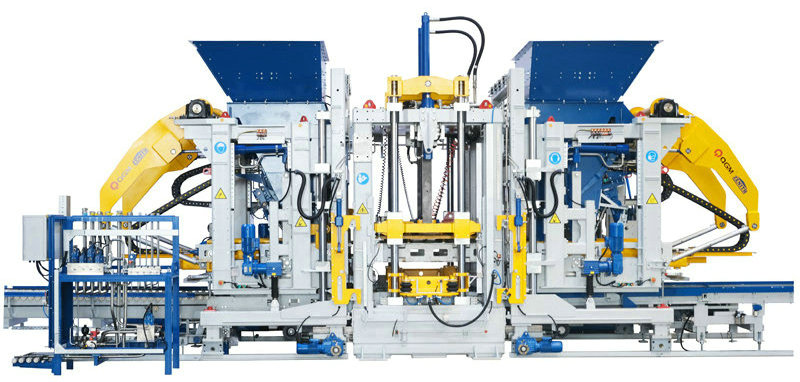

Schematic daim duab ntawm cov qauv cib ua los ntawm cov khoom siv

Technical Advantage

1. High-zoo thav duab tsim ntawm German version

Lub mainframe thav duab txais lub zog siab welded thav duab qauv tsim los ntawm Zenit's patented technology, uas yog welded los ntawm customized tshwj xeeb seem steel, nrog tsim nyog tsim, txawm thiab zoo nkauj vuam, thiab tag nrho cov thav duab undergoes cov laus kev co kev kho mob los xyuas kom meej qhov zoo thiab ruaj khov ntawm tus ncej. Cov txheej txheem tsim cov txheej txheem siab heev ua rau lub mainframe expandable, thiab sab pwm qhib thiab kaw muaj nuj nqi, core extraction (board) muaj nuj nqi, polystyrene board implantation muaj nuj nqi, thiab lwm yam yuav muab ntxiv tom qab.

2.Automatic ceev pwm hloov qhov system

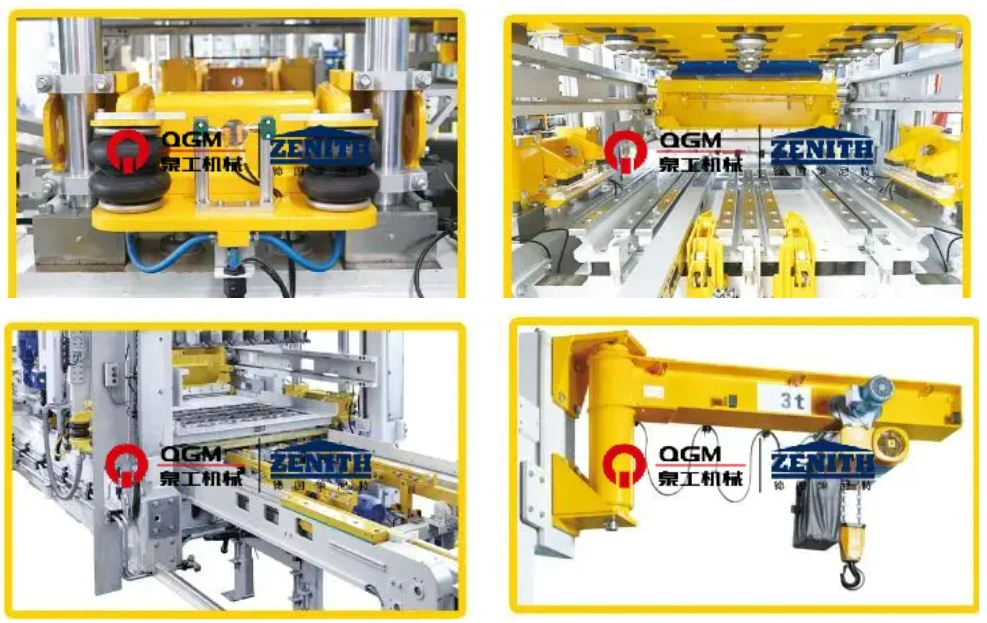

Thaum cov pwm pauv mus rau qhov chaw ua haujlwm, nws lub tshuab nqa tau paub tias tsis siv neeg pwm hloov ntawm lub tshuab hloov pwm ceev. Lub puab tsaig sab sauv thiab sab qis yog cia li clamped pneumatically, uas muaj kev nyab xeeb, zoo, yooj yim rau kev khiav lag luam thiab yooj yim rau kev tswj. Nws feem ntau suav nrog:

Pneumatic pwm clamping ntaus ntawv: Nws tsuas yog muaj pwm bracket thiab pneumatic clamping rods ntawm ob sab, uas pab hauv clamping thiab kho cov pwm thiab damping thaum lub tshuab ua haujlwm nqa tawm ua ntej kev vibration thiab lub ntsiab kev co, kom ua tiav cov txiaj ntsig zoo tshaj plaws thiab ua kom lub neej ntev ntawm cov pwm.

Pneumatic indenter locking ntaus ntawv: lub indenter yog kho los ntawm cov cuab yeej clamping nrog airbag, uas tuaj yeem hloov tau yooj yim thiab nrawm, txo lub sij hawm hloov pwm thiab kev teeb tsa, thiab xyuas kom meej qhov tseeb docking ntawm qis pwm ncej thiab sab sauv indenter.

Hluav taws xob Mould Insertion Device: Cov pwm mounting yog siv los nruab cov pwm rau hauv lub tshuab tseem ceeb thiab pub thiab tshem tawm cov pwm ntawm lub tshuab los ntawm kev siv lub tshuab pwm hluav taws xob, uas tuaj yeem siv rau feem ntau ntawm cov pwm hauv khw, thiab cov pwm tshwj xeeb tuaj yeem siv rau pwm tshwj xeeb.

Pwm Hloov Cov Ntaus: Nruab rau ntawm tus ncej ntawm lub tshuab tseem ceeb, nws yog siv los nqa thiab thauj cov pwm thaum hloov cov pwm, nruab nrog cov saw hlau hoist thiab hluav taws xob taug kev.

3. Fabrication systems

4. "Ultra-dynamic" servo vibration system:

"Ultra-dynamic" servo kev co tshuab yog ib yam ntawm high-efficiency, nws tus kheej-adaptive vibration system tshwj xeeb uas tsim los rau cib tshuab; lub servo lub cev muaj zog tuaj yeem ua rau cov lus teb ceev tshaj plaws hauv lub sijhawm luv tshaj plaws, paub txog kev ua haujlwm siab tshaj plaws, txo cov cement siv thiab ua kom lub voj voog luv luv, ua cov khoom siv ua vaj tse siab; lub zog vibration tuaj yeem hloov kho raws li qhov xav tau ntawm cov khoom sib txawv. Lub servo lub cev muaj zog tuaj yeem ua rau cov lus teb ceev tshaj plaws hauv lub sijhawm luv tshaj plaws kom paub txog qhov ua tau zoo tshaj plaws ntawm kev vibration, uas tuaj yeem txo qis cov cement, txo lub voj voog ntau lawm, thiab tsim cov khoom lag luam compact; lub zog vibration tuaj yeem hloov kho raws li qhov xav tau ntawm cov khoom sib txawv ntawm cov pob zeb sib txawv.

8 vibration units nrog txhua yam sib npaug ntawm tus kheej los ntawm 8 servo drives;

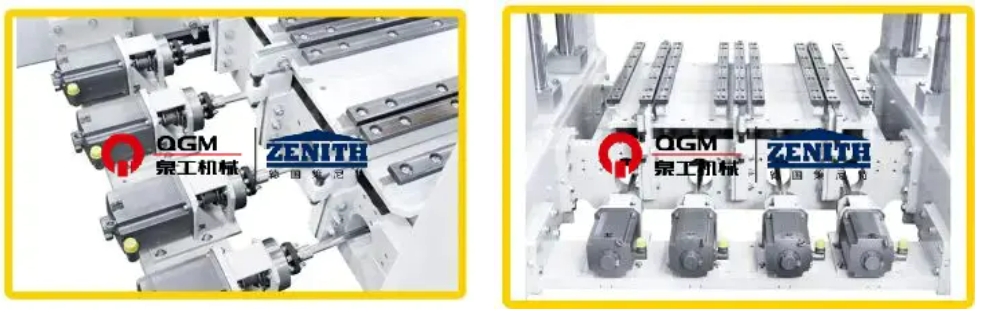

8 servo motors, ib tus zuj zus mounted rau sab nraud kev co cais beams ntawm lub cev muaj zog txhawb;

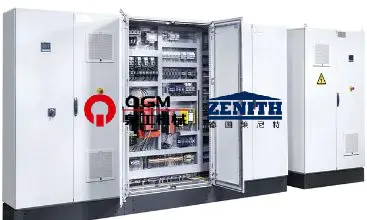

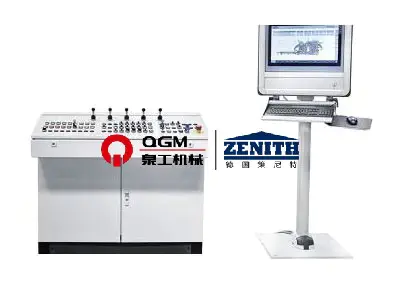

5. Qhov tseeb servo tswj qhov system

Los ntawm cov teeb liab tawm tswv yim, tswj cov theem thiab ceev ntawm kev vibration, synchronized motion control, high-speed standby, tuaj yeem ua tiav nyob rau hauv lub sij hawm luv luv ntawm kev co thiab kev co tshem tawm, los pab txo lub voj voog molding, thiab zoo dua braking nyhuv. Los ntawm txoj hauj lwm thiab ceev ob npaug kaw-voj, tswj lub excitation quab yuam tsuas yog ua nyob rau hauv txoj kev ntsug, ua kom lub zog excitation zoo, thiab tib lub sij hawm zam lub kab rov tav excitation quab yuam puas rau lub tshuab, ncua lub neej kev pab cuam ntawm cov cuab yeej, thiab muaj peev xwm ua kom sib txawv chaw rau cov khoom sib txawv, thiab tsim cov khoom zoo.

Lub taub hau xovxwm, pwm thav duab, tsheb sib sau ua ke thiab lub tsheb ntaub yog tswj los ntawm proportional directional valve nrog spool tawm tswv yim, uas muaj lub sij hawm teb ceev; kaw-voj tswj hom ntawm kev hloov pauv sensor / encoder-PLC-proportional directional valve-lub tog raj kheej raug saws, uas ua rau kev tswj kom raug, thiab qhov kev txiav txim ntawm lub tog raj kheej sai thiab ruaj khov; qhov chaw nres tsheb hydraulic txais cov twj tso kua mis sib txawv piston, uas tsis tso tawm cov roj siab thiab tshem tawm lub twj tso kua mis thaum lub tshuab hydraulic ncav cuag lub teeb siab kom txo tau lub zog noj; qhov chaw nres tsheb hydraulic txais accumulator auxiliary roj mov, uas txo lub zog noj; thiab qhov chaw nres tsheb hydraulic txais cov accumulator auxiliary roj mov, uas txo lub zog noj thiab txo lub zog noj. Lub chaw nres tsheb hydraulic txais cov accumulator auxiliary roj mov, uas yuav siv tau rau ntau yam kev ua nyob rau tib lub sij hawm, thiab lub siab ntawm hydraulic system yog ruaj khov; hydraulic system muaj lub siab sensors, uas tuaj yeem tso tawm ntawm lub vaj huam sib luag ua haujlwm kom pom tau yooj yim; hydraulic system muaj qhov ntsuas kub, txias thiab cua sov, uas tuaj yeem tswj cov roj kub zoo, kom cov roj hydraulic muaj kev ua haujlwm zoo.

6. Hydraulic systems
